Combined Industrial Socket IP66 32A Weatherproof Distribution Box

Name: Combined Industrial Socket IP66 32A Weatherproof Distribution Box
Brand: Fenigal/None
Price: 10 USD

China Combined Industrial Socket IP66 32A Weatherproof Distribution Box wholesale

Brand Name : Fenigal/None

Model Number : WIP01

Certification : CE,CCC

Place of Origin : China

MOQ : 1 Unit

Price : USD10~USD100

Payment Terms : T/T

Supply Ability : 1,000pcs/month

Delivery Time : 5-8 working days or bulk order negotiate

Packaging Details : Standard export carton

Material : ABS/PC

Color : Grey White/Transparent cover

Application : Power Distributing

Type : Distribution Box Electrical Boxes

Installation type : Surface type/ Flush type

Standard : IEC60439-3

Rated voltage : 220V-380V,220/110V

Rated current : 32,63A,100A

Frequency : 50 HZ/60HZ

External size : 230*381*110mm

Way : 5,8,12,15,18,24

Working temperature : -40 to +80 degrees centigrade

Contact Now

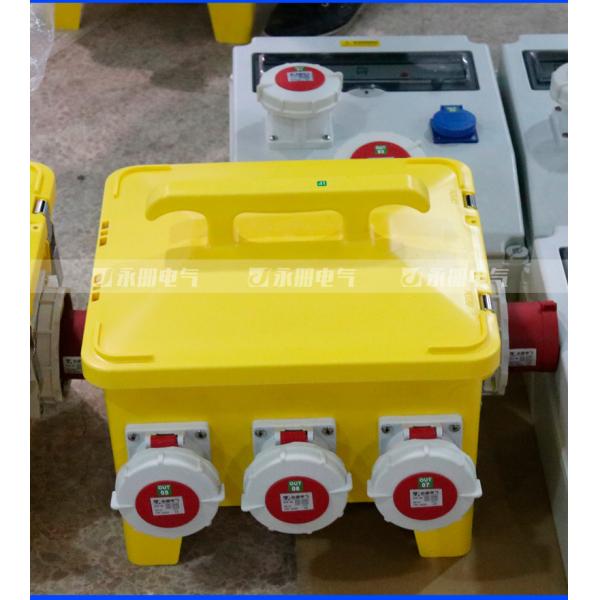

Mobile Portable Waterproof Combined Industrial Socket Distribution Box Outdoor IP66

Feature:

1.Protection types: IP 44 and IP 67.

2.Enclosure materials: AMAPLAST and especially chemical-resistant AMELAN.

3.Colors: body grey orange black yellow

4.Equipped with: CEE receptacles from 16A, 3-poles up to 63A, 5-poles, grounding-type receptacles in accordance with many national standards, DUO receptacles switched and interlocked from 16A, 3p to 32A, 5P

Type:

1.Wall mounted, enclosure
2.Receptacle strip, enclosure
3.Portable, enclosure
4.Portable, with feeder cable, enclosure

Model NO.

WIP01

Application Range

Industrial Area

Shell Material

Plastic ABS PA

Shell Protection Grade

IP44 and IP67

Brand

Fenigal/OEM

Material

ABS PA Plastic

Color

Grey Orange Black Yellow

Protection Degree

IP44 and IP67

Certificate

CCC Ce

Voltage

220-250V

Current

16A 32A

Customization

for Standard Size Is Available

Payment

T/T

Application

Indoor / Outdoor

Advantage

Portable

Trademark

wonhen

Transport Package

by Carton

Specification

ABS PA

Name	Socket box
Rated insulation voltage	AC400V(660V)
Rated operation voltage	AC230/400V, DC440V
Rated frequency	50Hz
Protection class	IP44, IP67
Single-loop output current	16A, 32A, 63A, 125A etc.
Single-loop output voltage	20-25V,40-50V,100-130V,200-250V,380-480V, 500-660V
Environment temperature	-30 ℃ ~+40 ℃, indoor and outdoor
Sample	free

Models:

Order No.	Product Name	Dimension(mm)
223415	Water-proof Electric Box	220340150
304016	Water-proof Electric Box	300400160
305216	Water-proof Electric Box	300520160
274616	Water-proof Electric Box	270460160
365418	Water-proof Electric Box	360540180
233316	Water-proof Electric Box	230330160
282815	Water-proof Electric Box	*280280150*
363616	Water-proof Electric Box	360360160
608022	Water-proof Electric Box	600800220

Application:

They are widely used in the machine, Petroleum Chemical Industry , Electricity,Electronics,railway,Construction Site,Airports,mine, post-mining land, water treatment plant and port,Pier,market,hotel.

Feature:

Manufacture of CEE Industrial plugs and sockets with IEC60309-2 standard (CEE) and high quality with RoHS.

1.Poles: 2P+E, 3P+E, 3P+N+E;

2.Rated Voltage: 110V, 230V, 400V, 500V;

3.Rated Current: 16A, 32A, 63A, 125A;

4 Waterproof: IP44 or IP67;

5. Earth Contact Position: 3h, 6h, 9h

6.Feature: dust-proof,waterproof,Corrosion-Proof and heat-resistant,UV-stop

7.This Industrial Connector have soft-contact technique, and the cable penetration from top and buttom.

8. Various colors to choose from:Red, blue and black.

Combined Industrial Socket IP66 32A Weatherproof Distribution Box
